Experience quality Spruce LVL (Laminated verneer lumber)
Pollmeier LVL consists of multiple 3mm thick veneer layers, bonded by an adhesive.
Peeling and later bonding the veneers, reduces natural imperfections, which are then spread over the cross-section. Resulting in a homogenous and efficient engineered wood product, that is tailored for standardized constructive use in non-visible applications. Furthermore, precision cuts can be used for high load components in rack-, door- and vehicle constructions.
LVL enables the use of smaller cross-sections due to its higher strength values, resulting in material and cost savings.
To produce Pollmeier Spruce LVL S, the veneers are exclusively glued together lengthwise. This makes it suitable for use as a bar-shaped component in a wide variety of timber construction applications, such as thresholds, purlins, ceiling beams and many more.
Pollmeier Spruce G-LVL consists of at least 3 boards of our spruce LVL S glued together. This makes it possible to produce large-format components that allow you to replace even highly stressed steel or concrete components and use significantly slimmer cross-sections than with solid wood products.
Your advantages at a glance

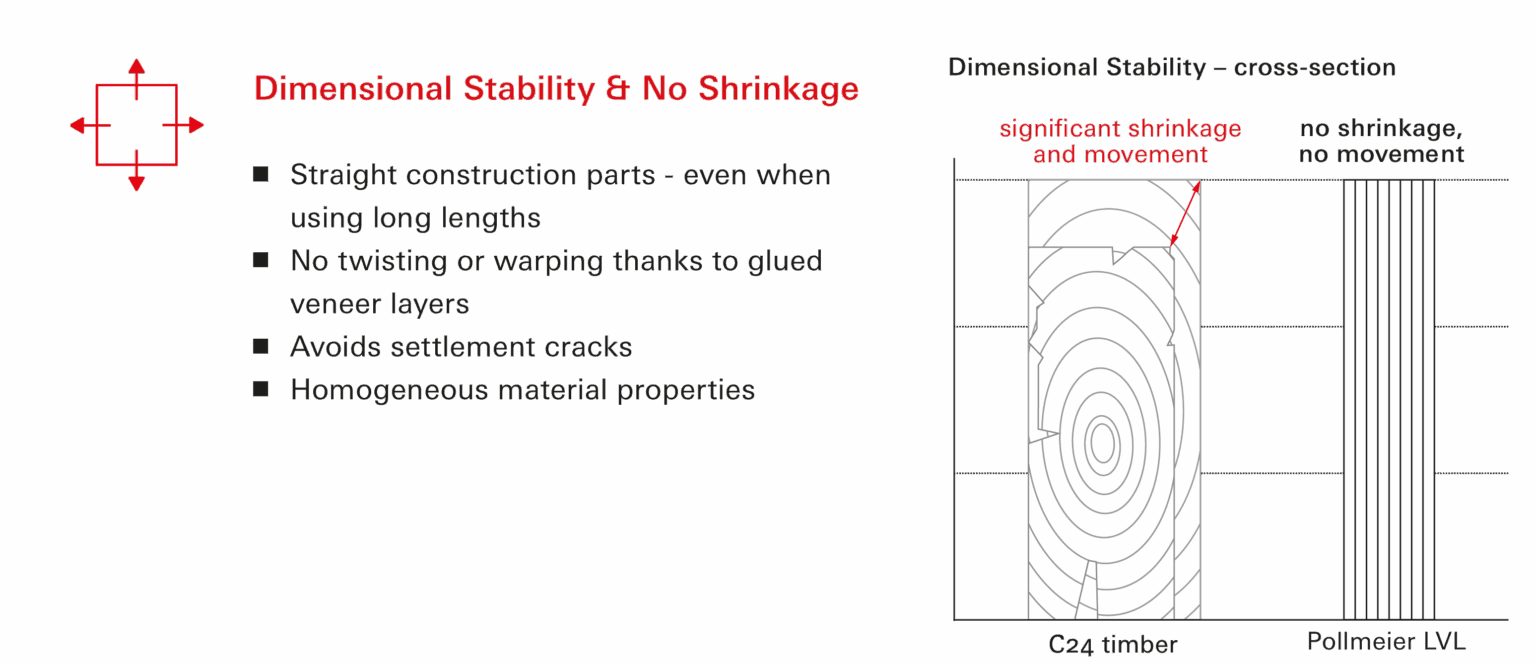

- Dimensional Stability & No Shrinkage
- High load bearing with small sections

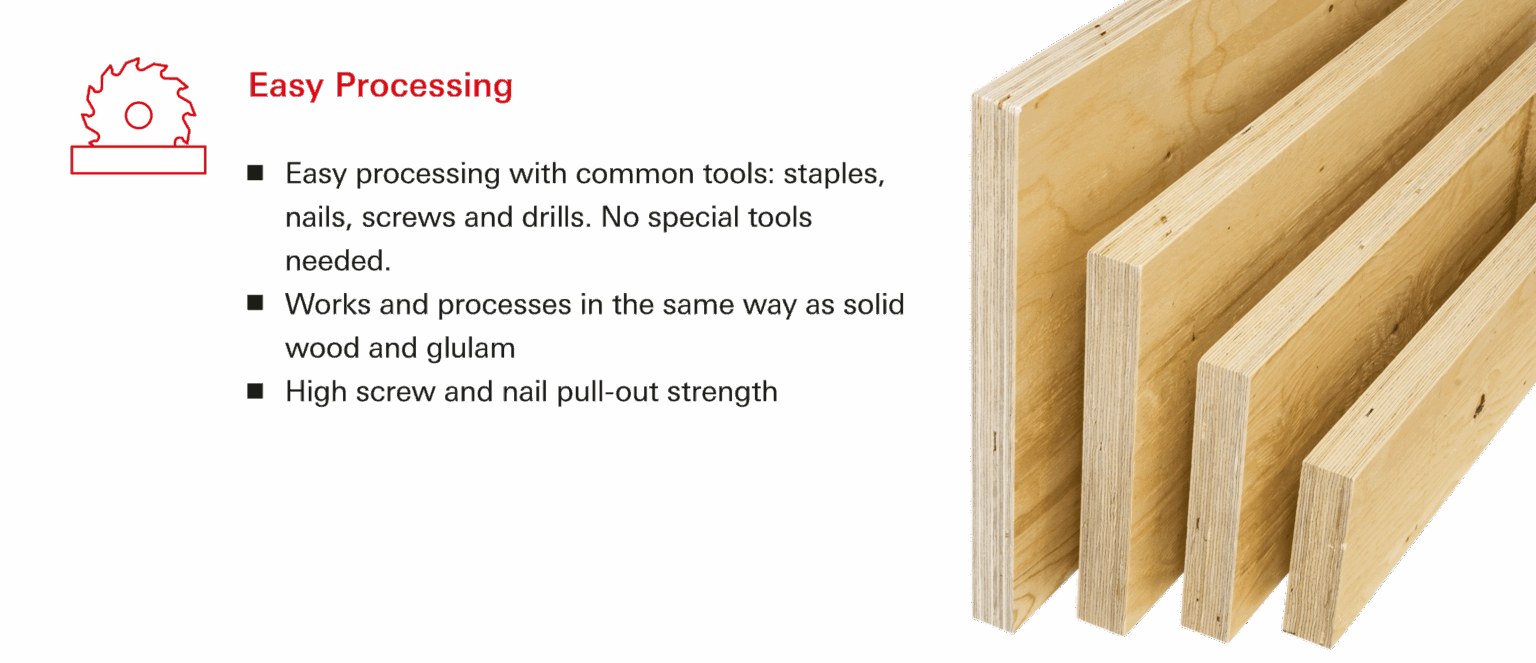

- Easy processing with common tools
- Resource efficient
- PEFC certified

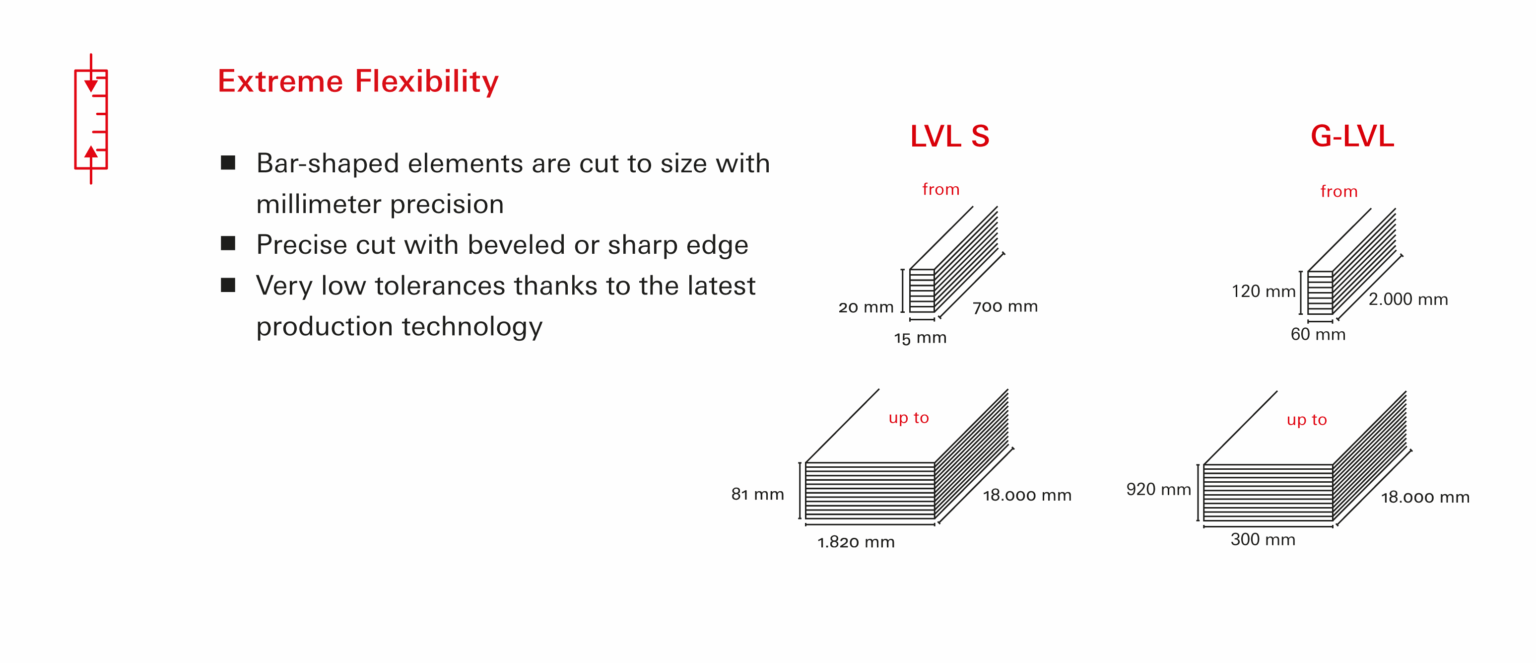

dimensions
| thickness [mm] | width [mm] | length [mm] | |
|---|---|---|---|
| Board Spruce LVL-S * | 45, 63, 75 | 1.820 | 1.850 - 18.000 |
| Spruce LVL Cut-to-size | 24, 30, 36, 39, 42, 45, 51, 63, 75, 81 | 15 - 230 | 700 - 6.000 |
| Spruce G-LVL flat | 120 - 920 | in 40 mm steps | 60, 80, 120, 160, 200, 240, 280, 300 | 2.000 - 18.000 |
* Board thickness can be regrinded max 3mm.
Tolerances can be found in the brochures PRODUCT OVERVIEW and G-LVL respectively.
Other thicknesses, widths and lengths available on request!
Fields of applications
Material comparison
More details, please check the product information sheets in the download area.
| Timber C24 | Gluelam GL24C | Pollmeier LVL-S | Pollmeier G-LVL | ||
|---|---|---|---|---|---|
| E-Modul [N/mm²] | E0,mean | 11.000 | 11.000 | 14.000 | 14.000 |
| E-Modul [N/mm²] | E0, 05 | 7.400 | 9.100 | 12.000 | 12.000 |
| Bending strength edgewise [N/mm²] | (f m,k) | 24 | 24 | 44* | 53* |
| Bending strength flatwise [N/mm²] | (f m,k) | 24 | 24 | 50 | 34* |
| Compressive strength edgewise [N/mm²] | (f c,90,k) | 2,7 | 2,5 | 7,3 | 8,8* |
| Compressive strength flatwise [N/mm²] | (f c,0,k) | 21 | 21,5 | 40 | 48* |
| Tensile strength parallel [N/mm²] | (f t,0,k) | 14 | 15 | 31 | 31* |
| Shear strength parallel [N/mm²] | (f v,0,edge,k) | 2 | 25 | 4,6 | 4,6 |
*The loads to be assumed depend on the cross-section used. Please check the relevant most updated approval.
