Pollmeier Spruce LVL
LVL enables the use of smaller cross-section due to its higher strength and load bearing capacity.
Timber construction with benefits

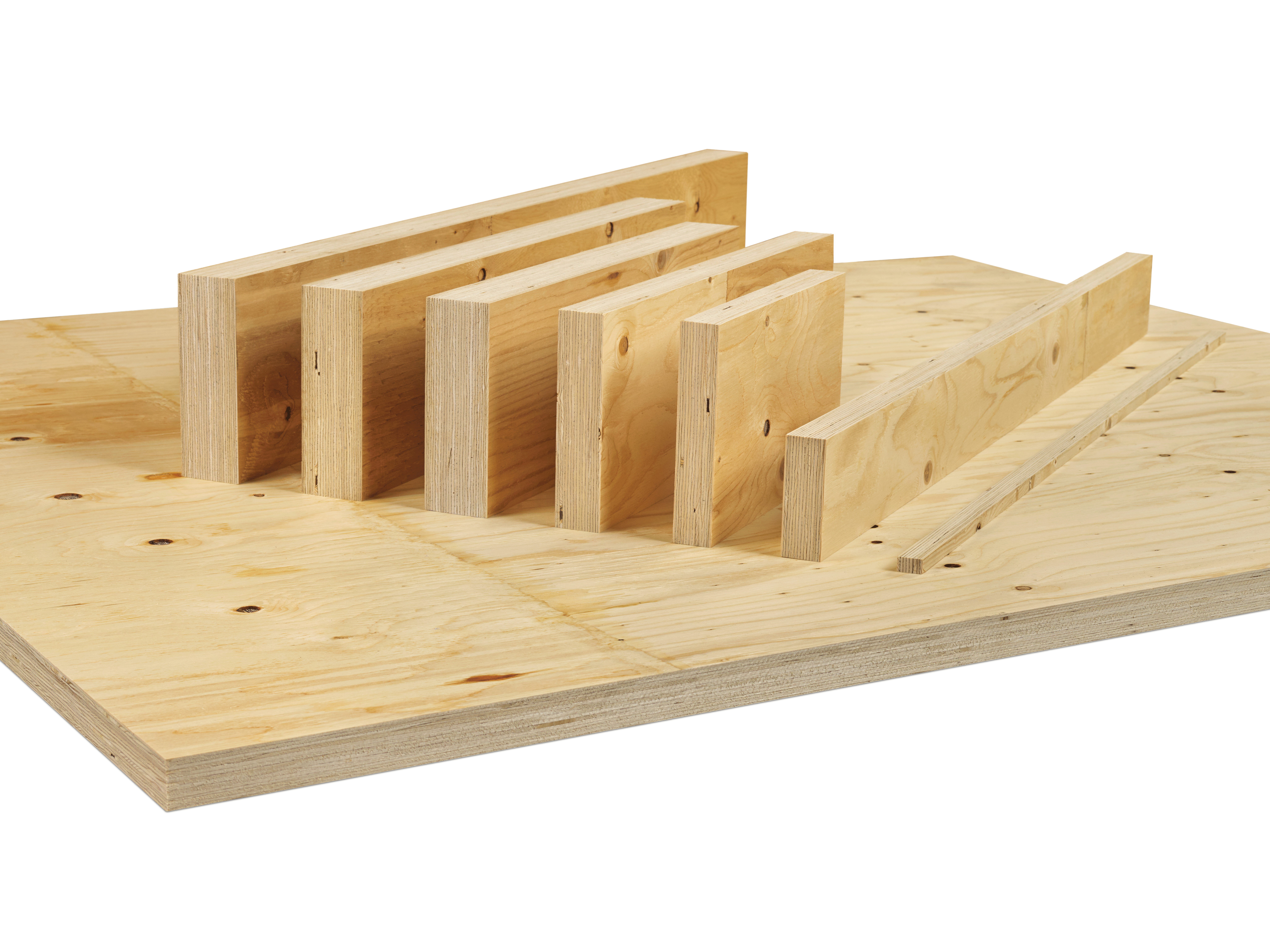

Spruce LVL (laminated veneer lumber)
Pollmeier Spruce LVL consists of multiple 3mm thick veneer layers, bonded by an adhesive.
Peeling and later bonding the veneers, reduces natural imperfections, which are then spread over the cross-section. Resulting in a homogenous and efficient engineered wood product, that is tailored for standardized constructive use in non-visible applications. Furthermore, precision cuts can be used for high load components in rack-, door- and vehicle constructions.
LVL enables the use of smaller cross-sections due to its higher strength values, resulting in material and cost savings.
Advantages
- High load bearing with small sections
- Carefree processing and treatment
- High efficiency
- Sustainable building material
- Regional resources
- Ressource efficient
- PEFC certified
Advantages
- High load bearing with small sections
- Carefree processing and treatment
- High efficiency
- Sustainable building material
- Regional resources
- Ressource efficient
- PEFC certified
Fields of applications
Sole and top plates
Wall studs
Lintels
Rimboard
Ceilings
Spruce LVL in the
constructive field:
Spruce LVL in the
constructive field:
Spruce LVL in the
constructive field:
Spruce LVL in the
constructive field:
Spruce LVL in the
constructive field:
- Sole and top plates
- Wall studs
- Lintels
- Rimboard
- Ceilings
Upholstered furniture
Door Construction
Constructive furnitures
rack construction
Vehicle construction
Spruce LVL
tailored cut:
Spruce LVL
tailored cut:
Spruce LVL
tailored cut:
Spruce LVL
tailored cut:
Spruce LVL
tailored cut:
- Upholstered furniture
- Door construction
- Constructive furniture
- Rack construction
- Vehicle construction
Downloads
Downloads
Dimensions
Other thicknesses, widths and lengths available on request!
| thickness [mm] | width [mm] | length [mm] | |
|---|---|---|---|
| Board Spruce LVL S | 24, 30, 36, 39, 42, 45, 51, 63, 75, 81 mm | 1.820 mm | 1.850 mm - 18.000 mm |
| Spruce LVL Cut-to-size | 24, 30, 36, 39, 42, 45, 51, 63, 75, 81 | 15 mm - 230 mm | 700 mm - 6.000 mm |
* All products are supplied in non-visual quality.
Board thickness can be regrinded max 3mm.
